PASCHAL India offers user-friendly formwork solutions

In an exclusive interaction with Built Expressions, Mr. Eldo Varghese, General Director, PASCHAL Formwork India Pvt. Ltd., gives an overview of the latest products offered by the company.

PASCHAL one of the leading formwork company was founded in 1964 in Steinach in the Black forest / West Germany. It is an ISO 9001:2000 company currently serves construction companies in 60 Countries. “Overwhelming request from our prospective customers in India persuaded us to start our operations in India. Our technical support is located at Jubilee Hills, Hyderabad and Manufacturing unit at Visakhapatnam,” says Mr. Eldo Varghese, General Director, PASCHAL Forwork India Pvt. Ltd.

In April 2010, the company launched its first product, Modular Panel system, which gained very quick response from the market because of its user friendliness.

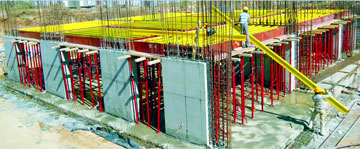

Modular Panel System

PASCHAL Modular formwork systems are of various panel sizes. The panels are strong and durable, being manufactured of 6 mm-thick high quality sturdy steel which do not corrode. Surface of these panels are covered by high quality Finnish birch plywood (density 780 kg/ cum) with a phenolic resin coating. The edges of the plywood are protected by steel frame and the gap between frame and surface is filled with a special joint filling agent. Hence, the panel’s plywood can be re-used up to 250 times and the steel frame shall remain for a longer period.

Features:

• German Technology and quality
• Complete Form work solution
• Panel system- various sizes
• PASCHAL I-dent (RFID)a unique feature, a compatible solution for  logistics
• Most Durable & Environment friendly
• Just one connection technique

Advantages:

• Versatile, Flexible and Unique
• Self-Alignment –Précised Dimensions
• Quick adaptability
• User Friendly- easy erection and Dismantling
• Smooth finish-plastering can be avoided

PASCHAL’s Modular system is a multipurpose system which can be used in reality sector as well as Infrastructure sector. In a building project, the system can be used from Retaining walls, Footings; Plinth Beams Columns, shear walls, Lift shaft, and roof Beams. The system is used wherever the concrete pouring is done. The system is also used in many infrastructure projects like Power projects for Track Hoppers; RCC walls etc., Irrigation Projects for canal Drains, box culverts, Water Treatment Plants, and Reservoirs etc.

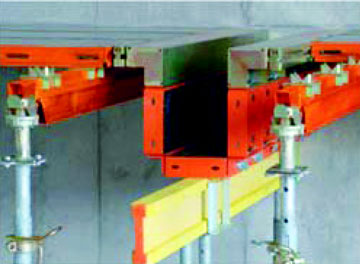

Paschal Deck System for Slab with H- Girder

Paschal Deck is a flexible Slab formwork for any type of Slabs. The three main components are:

• H 20 Girder
• Ply Wood
• Props

The Main Advantages:

• Less number of Connections
• Flexible adjustment to every layout
• Optimum Use of Material
• Always the same Assembly Sequence
• Low Material Cost

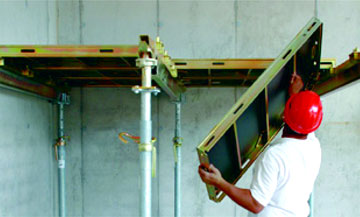

PASCHAL has the new Steel panel slab system 'e-deck'

It is a new concept for slab. These  panel frame consists of profiled steel  with a height of only 7.5cm, and the facing consists of 9 layer, 12mm thick birch plywood. These panels are light in weight, weighting less than 20kg, hence leading to better workmanship and high productivity. The system doesn’t require a crane facility and can be handed manually.

"High flexibility and Efficiency combined with occupied safety are the key competitive factor in the present day concrete construction industry. Our new development, the modular slab formwork 'e-deck' is tailored to the requirements and also provides the well-established, durable manufacturing quality of PASCHAL," adds Mr. Varghese

'e-deck' is a user friendly system for slab with the following features:

•  Lightweight - user-friendly
• Quick stripping - panels can be reused within a short period
• Better working space for man movement for erection and stripping of panels
• Fully compatible with Modular Universal Formwork for beam casting

Material tracking through RFID

RFID Technology: Since 2003, the formwork specialist, PASCHAL-Werk G. Maier GmbH has resorted a new territory of development and designed the system PASCHAL-I dent. PASCHAL uses this system consequently and successfully since 2008 with corresponding software for administration of its own rental park.
